Windows logon with YubiKey

Briefly: The popular YubiKey OTP authentication device now can be used in Rohos Logon Key and Rohos Disk as an access Key for Windows/Mac and security token for the personal encrypted disk.

Security advantages with YubiKey:

  • Secure authentication in Windows XP/Vista/2008/Seven
  • Optional strong Two-factor authentication. Yubikey + your Windows password.
  • Replaces weak password based login with a hardware key
  • Allows to use big Windows password, without the need for remembering it
  • The system is password protected but you don’t need to enter it manually each time you log in or unlock Windows
  • Login with YubiKey is fully automatic and fast!
  • Cross-platform: Use a single YubiKey to log into Windows and Mac
  • Windows is protected even in Safe Mode
  • Login into Windows remote desktop
  • Supports any Yubikey configuration - OTP or H-OTP authentication, Offline or Online validation.

Windows logon with YubiKey

Allows to access Windows and Mac in a secure way by YubiKey replacing the regular password based  login. All that the user should do is to insert YubiKey into the USB port and press it.

Rohos Logon Key is the only program that fully works with any Windows, Mac OS X and supports Windows remote desktop authentication by using YubiKey.

Advantages of using YubiKey in Rohos Logon:

Full support of Windows XP, Vista and Windows Seven including: remote desktop access and automatic password renewal, works  also under Windows Active Directory.



  • Completely replaces password based login with Yubikey.
  • Strong 2-factor authentication is possible: Yubikey + your Windows password.
  • Emergency login – helps to log into Windows if YubiKey is broken or lost.
  • Protects computer even in Safe Mode
  • Possibility to use several YubiKey to log into one computer, and vice versa one YubiKey for several computers


Setting-up YubiKey in Rohos Logon Key:

  • First you have to install Rohos Logon Key

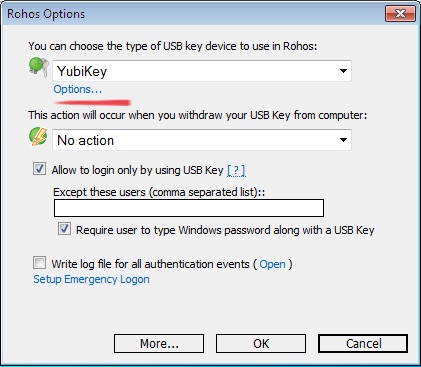

  • In the main window open “Options” and choose YubiKey as USB Key device type for Rohos Logon:

  • In this dialog choose YubiKey in USB Key device type list.

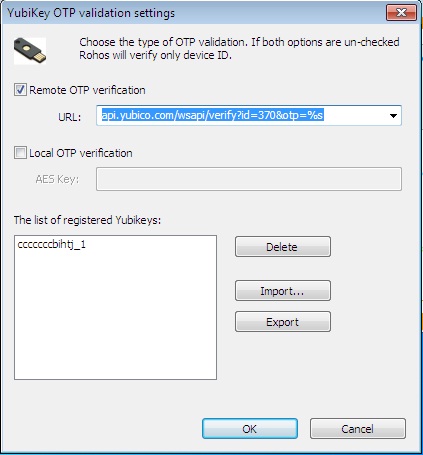

  • After you have chosen Yubikey, re-open this dialog box and click YubiKey options… link under ‘USB Key type’ list box, to set up OTP validation method. By default Rohos Logon does not validate OTP.

Go back to main Rohos Logon window and click “Set up USB Key”:


After you enter your current user password > Click OK and Rohos Logon will ask you to touch YubiKey. Now you can use Yubikey for Windows login and desktop unlock.


For non-English users it’s important to know that during generating and typing YubiKey’s OTP the current system language is used. So make sure that during the Rohos Logon setup process and upon login the language that is used, e.g. Russian, German, Spanish, etc. remains the same. Otherwise the program displays the error: “The given USB key has not been configured for this computer”.

Yubikey security in Rohos:

Rohos Logon and Rohos Disk are able to work with any type of YubiKey - with Static or dynamic OTP mode.

  • During USB Key setup the program is bound to YubiKey IDs (first 12 chars).
  • OTP validation is supported.
  • Rohos Logon stores your Windows login (user name and password) in encrypted form in Windows registry
  • During accepting a string from YubiKey Rohos Logon allows only 4 sec to enter it, or it will deny it thinking that user enters it manually (Copy/Paste disabled also)
  • The program allows to set up 2 and more YubiKeys for login into the same PC
  • If you forget or lose YubiKey you can use Emergency Login

Setup Yubikey H-OTP for Windows login

Please read more in Google Authenticator support page.

Windows Remote Desktop authentication

Rohos Logon supports YubiKey OTP security and offers a flexible hardware based authentication for both Windows local login and Remote Desktop:

  • Supports both OTP verifications methods: local - by encryption OTP ( AES key should be provided) and remote - by validating OTP on any Yubikey enabled web site (according to Yubico validation API).
  • Remote Desktop Logon.



Rohos Logon Key for YubiKey integration guide - Step-by-step guide on how to set up Windows remote desktop logon with YubiKey.


Setup Yubikey for strong two-factor authentication

  1. Open Rohos Logon Key > Options :
    - Check “Login by USB Key only” option
    - Check “Require user to type Windows password along with a USB Key”.
  2. Rohos main window > Setup USB key
    - Click “Setup Emergency Login” to be able access your PC in case of USB Key lost.

  3. On the Login Screen:

    - On the logon screen connect USB Key (enter OTP if this is a Yubikey

    - Rohos logon icon automatically gets selected (with user name is filled in already)


    - type in your password to Windows and hit Enter.

  4. In order to login into Windows you need to provide physical USB Key and your Windows password simultaneously. Both credentials and OTP token are requested.

System requirements

In order to run Rohos Logon properly the requirements are the following:

  • Windows 2000/2003/XP/Vista/2008/Seven (x86, x64 editions)
    or Mac OS X 10.4 , 10.5
  • 2Mb free space on disk
  • Admin’s privileges to install the program
  • Yubikey 1.0 or 2.0 (with 44 chars OTP, where first 12 chars is Yubikey ID)

Knowledge Base

Videos:

+ Windows login with Yubikey
+ Windows Remote Desktop login with Yubikey
+ Rohos Disk Encryption + Yubikey

Library:

Rohos Logon Key for YubiKey integration guide - Step-by-step guide on how to set up Windows remote desktop logon with YubiKey.

Yubikey 2.0 Setup Dynamic configuration for Rohos Logon with static AES
